LVL Structural Beams |
|
|
LVL Structural Beams |
|

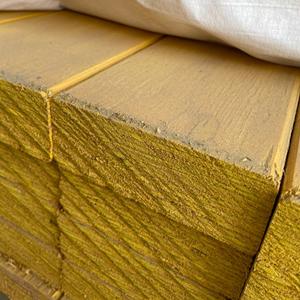

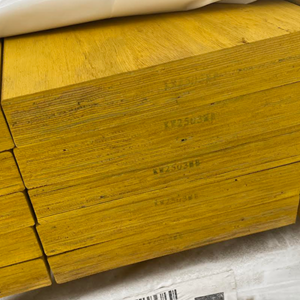

Laminated Veneer Lumber (LVL) is a construction timber uniformly engineered with a high strength to weight ratio and available in long lengths. The E14 graded LVL provides the equivalent performance of F17 hardwood, with H2S treatment for termites in above-ground weather protected applications.
| LVL SupaRed E14/F17 H2 BeamsAvailability | |||
| LVL Beam SupaRed (E14/F17 H2S) 90 x 45mm per LM | SR904510 | 3.6m 4.8m 5.4m 6.0m 7.2m | |
| LVL Beam SupaRed (E14/F17 H2S) 140 x 45mm per LM | SR1404510 | 3.6m 4.8m 5.4m 6.0m 10.8m | |
| LVL Beam SupaRed (E14/F17 H2S) 190 x 45mm per LM | SR1904510 | 3.6m 4.8m 5.4m 6.0m 7.2m 12m | |
| LVL Beam SupaRed (E14/F17 H2S) 240 x 45mm per LM | SR2404510 | 3.6m 4.8m 5.4m 6.0m 7.2m 12m | |
| LVL Beam SupaRed (E14/F17 H2S) 290 x 45mm per LM | SR2904510 | 3.6m 4.8m 5.4m 6.0m 7.2m 12m | |
| LVL Beam SupaRed (E14/F17 H2S) 360 x 45mm per LM | SR3604510 | Up to 12.0m in 0.6m increments | |
| LVL Beam SupaRed (E14/F17 H2S) 400 x 45mm per LM | SR4004510 | 6m 12m | |
| LVL F17 H2 Beams - 45mmAvailability | |||
| LVL Beam E14/F17 H2S Treated 90 x 45mm per LM | LV904510 | 3.6m 4.8m 5.4m 6.0m 7.2m | |
| LVL Beam E14/F17 H2S Treated 120 x 45mm per LM | LV1204510 | Order | |
| LVL Beam E14/F17 H2S Treated 140 x 45mm per LM | LV1404510 | 3.6m 4.8m 5.4m 6.0m 7.2m | |
| LVL Beam E13 H2S Treated 170 x 45mm per LM | LV1704510 | Order | |
| LVL Beam E14/F17 H2S Treated 190 x 45mm per LM | LV1904510 | 3.6m 4.8m 5.4m 6.0m 7.2m | |
| LVL Beam E14/F17 H2S Treated 240 x 45mm per LM | LV2404510 | 3.6m 4.8m 5.4m 6.0m 7.2m | |
| LVL Beam E14/F17 H2S Treated 290 x 45mm per LM | LV2904510 | 3.6m 4.8m 5.4m 6.0m 7.2m | |
| LVL F17 H2 Beams - 35mmAvailability | |||
| LVL Beam E14/F17 H2S Treated 90 x 35mm per LM | LV903510 | Order | |
| LVL Beam E14/F17 H2S Treated 120 x 35mm per LM | LV1203510 | Order | |
| LVL Beam E14/F17 H2S Treated 140 x 35mm per LM | LV1403510 | Order | |
| LVL Beam E14/F17 H2S Treated 190 x 35mm per LM | LV1903510 | Order | |
| LVL Beam E14/F17 H2S Treated 240 x 35mm per LM | LV2403510 | Order | |
LVL E13
| LVL E13 H2 BeamsAvailability | |||
| LVL Beam E13 H2S Treated 90 x 63mm per LM | LV906310 | 3.6m 4.8m 5.4m 6.0m 7.2m | |
| LVL Beam E13 H2S Treated 150 x 63mm per LM | LV1506310 | Order | |
| LVL Beam E13 H2S Treated 200 x 63mm per LM | LV2006310 | Order | |
| LVL Beam E13 H2S Treated 240 x 63mm per LM | LV2406310 | Order | |
| LVL Beam E13 H2S Treated 300 x 63mm per LM | LV3006310 | Order | |
| LVL Beam E13 H2S Treated 360 x 63mm per LM | LV3606310 | Order | |
| LVL Beam E13 H2S Treated 400 x 63mm per LM | LV4006310 | Order | |
| LVL Beam E13 H2S Treated 400 x 45mm per LM | LV4004510 | Order | |
| LVL Beam E13 H2S Treated 300 x 75mm per LM | LV3007510 | Order | |
| LVL Beam E13 H2S Treated 400 x 75mm per LM | LV4007510 | Order | |
| Engineered I-Joist 200-240mmAvailability | |||
| Engineered I-Joist 200 x 45mm per LM | IJ20045 | Order | |
| Engineered I-Joist 240 x 45mm per LM | IJ24045 | Order | |
| Engineered I-Joist 240 x 52mm per LM | IJ24052 | Order | |
| Engineered I-Joist 240 x 58mm per LM | IJ24058 | Order | |
| Engineered I-Joist 240 x 90mm per LM | IJ24090 | Order | |
| Engineered I-Joist 300mmAvailability | |||
| Engineered I-Joist 300 x 45mm per LM | IJ30045 | Order | |
| Engineered I-Joist 300 x 52mm per LM | IJ30052 | Order | |
| Engineered I-Joist 300 x 58mm per LM | IJ30058 | Order | |
| Engineered I-Joist 300 x 90mm per LM | IJ30090 | Order | |
| Engineered I-Joist 360-400mmAvailability | |||
| Engineered I-Joist 360 x 45mm per LM | IJ36045 | Order | |
| Engineered I-Joist 360 x 58mm per LM | IJ36058 | Order | |
| Engineered I-Joist 360 x 90mm per LM | IJ36090 | Order | |
| DindasEDGE Formwork LVLAvailability | |||
| DindasEDGE Formwork LVL E12 100 x 36mm per LM | LE10036 | Order | |
| DindasEDGE Formwork LVL E12 150 x 36mm per LM | LE15036 | Order | |
| DindasEDGE Formwork LVL E12 170 x 36mm per LM | LE17036 | Order | |
| DindasEDGE Formwork LVL E12 200 x 36mm per LM | LE20036 | Order | |
